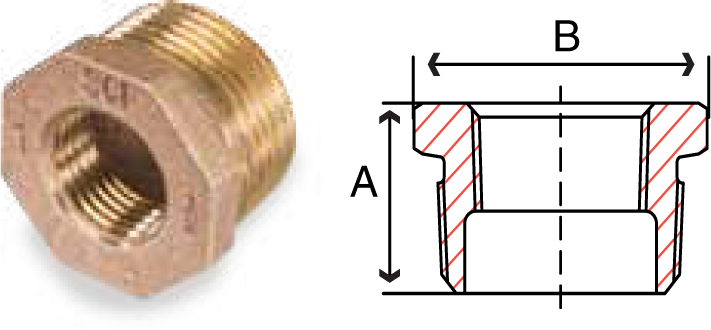

Bronze Bushes Fittings Hex Bushing

Bronze Bushes Fittings Hex Bushing
Bronze Bushes Fittings Hex Bushing

Size
IN		 A
IN		 B
IN		 Hex Packing Weight LB
Inner Master
1/4 x 1/8 0.65 0.66 Out 120 1920 0.02
3/8 x 1/8 0.70 0.70 Out 75 1200 0.05
3/8 x 1/4 0.70 0.73 Out 75 1200 0.04
1/2 x 1/8 0.81 0.90 Out 100 800 0.10
1/2 x 1/4 0.81 0.90 Out 100 800 0.09
1/2 x 3/8 0.81 0.90 Out 100 800 0.07
3/4 x 1/8 0.88 1.18 Out 50 600 0.1
3/4 x 1/4 0.93 1.18 Out 40 480 0.1
3/4 x 3/8 0.93 1.18 Out 50 600 0.1
3/4 x 1/2 0.93 1.18 Out 40 480 0.1
1 x 1/4 1.13 1.12 In 50 400 0.2
1 x 3/8 1.13 1.12 In 50 400 0.2
1 x 1/2 1.10 1.44 Out 40 320 0.2
1 x 3/4 1.10 1.44 Out 40 360 0.2
1-1/4 x 1/2 1.18 1.80 In 30 120 0.3
1-1/4 x 3/4 1.18 1.80 Out 30 120 0.4
1-1/4 x 1 1.18 1.80 Out 30 120 0.3
1-1/2 x 1/4 1.27 1.15 In 25 100 0.4
1-1/2 x 3/8 1.30 1.34 Out 25 100 0.4
1-1/2 x 1/2 1.27 1.34 In 25 100 0.4
1-1/2 x 3/4 1.27 1.63 In 25 100 0.4
1-1/2 x 1 1.19 2.04 Out 25 100 0.5
1-1/2 x 1-1/4 1.19 2.04 Out 25 100 0.4
2 x 1/2 1.35 1.36 In 20 80 0.6
2 x 3/4 1.35 1.65 In 20 80 0.7
2 x 1 1.35 2.00 In 20 80 0.7
2 x 1-1/4 1.35 2.50 Out 20 80 0.8
2 x 1-1/2 1.35 2.55 Out 20 80 0.8
2-1/2 x 1/2 1.64 3.15 Out 15 60 1.2
2-1/2 x 3/4 1.58 1.65 In 15 60 1.1
2-1/2 x 1 1.58 2.00 In 12 48 1.1
2-1/2 x 1-1/4 1.60 2.39 In 12 48 1.2
2-1/2 x 1-1/2 1.52 2.70 In 12 48 1.3
2-1/2 x 2 1.62 3.15 Out 12 48 1.1
3 x 1/2 1.60 1.35 In 12 48 1.9
3 x 3/4 1.70 1.65 In 10 40 1.9
3 x 1 1.60 2.00 In 12 48 1.6
3 x 1-1/4 1.70 2.40 In 10 40 1.7
3 x 1-1/2 1.70 2.70 In 12 48 1.8
3 x 2 1.70 3.55 Out 6 24 2.3
3 x 2-1/2 1.70 3.90 Out 6 24 2.1
4 x 1-1/2 1.80 2.70 In - 20 3.4
4 x 2 1.80 3.30 In - 20 3.6
4 x 2-1/2 2.10 4.75 Out - 20 3.9
4 x 3 2.10 4.75 Out - 20 4.2
